Attached Sierra Patio Cover (Midwest Climates)

(2 reviews) Write a Review
$2,866.00
Availability:
Usually Ships within 14-16 Business Days
Assembly Information:
Installation Guide
Installation Video:
Installation Video
Measuring Guide:
Measuring Guide
Adding to cart… The item has been added

Product Overview

The Sierra is 15 Degrees Coolers' best-selling patio and carport cover based on the balance of price and protection it strikes. The Sierra’s all aluminum construction provides an economical cost with unbeatable coverage and shelter.

  • Components are pre-cut and pre-punched for easy installation.
  • Hardware is included for an easy do-it-yourself assembly.
  • Resists winds over 100 mph, depending on patio cover projection.
  • Standard Snow Load Rating of 30lbs per sq ft for our Midwestern Model, and 50lbs per sq ft for our Northern Model. Higher Snow Load capabilities are available. Please Contact Us for a custom quote.
  • Gutter/Fascia Available in 8 beautiful colors: white, ivory, tan, clay, gray, black, brown, & dark green.
  • Standard 3" sq extruded Aluminum support posts (8' Tall). Decorative columns are available upon request contact us for a custom quote.
  • 10" wide, V-shaped Aluminum roof panels with stucco embossed finish. Midwestern Models use a .024" thick panel, while the Northern Model uses a .032" thick panel.
  • Projections are available in 12" increments and widths in 10" increments. Please Contact Us for a custom quote.
  • 6" Tall Fascia with built-in 3x3" gutter with an available optional downspout.
  • Shop drawings, engineer sealed drawings, and calculations are available at an additional cost.

Constructed from aluminum & steel, our Patio Covers are covered by our industry leading warranty.

How To Order:

1. Measure the area you wish to be covered. Using our convienent Measuring Guide.

2. Pick the appropriate size needed for your application from our drop down menu.

3. Choose your desired Roof Panel color from our selection of swatches. Physical color samples are available upon request

4. Choose your desired Gutter/Fascia color from our selection of swatches. Physical color samples are available upon request

5. Choose post color from our selection of swatches. Standard Sierras come with a 3" square aluminum post. Additional post options are available upon request

Sierra Width Number of Posts
8'-4" to 11'-8" 2
12'-6" to 18'-4" 3
19'-2" to 28'-4" 4
29'-2" to 35'-0" 5
35'-10" to 40'-0" 6

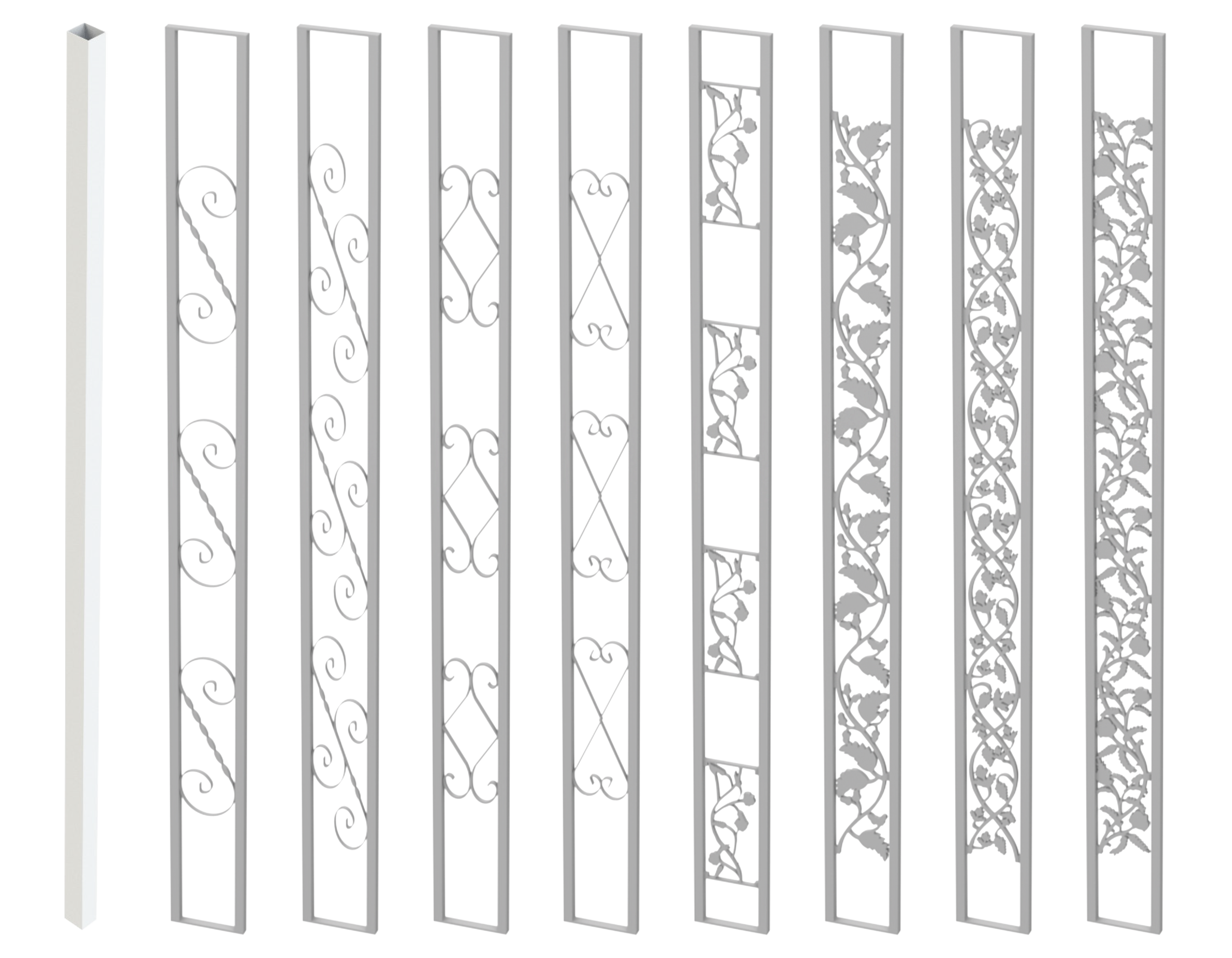

Standard 3" Square Aluminum Post (8' Tall)
Twisted Single S (Model 302)
Twisted Double S (Model 304)
Diamond (Model 322)
Double Heart (Model 306)
Cast Rose (Model 314)
Cast Oak Leaf Continuous (Model 310)
Cast Grape Continuous (Model 316)
Cast Rose Continuous (318)



6. Choose your desired water management system:

Scupper (Standard)

Residential Downspout Kit (Color Matched to Roof Panel & Wall Hanger Color Choice)



Need help measuring? Please refer to our measuring guide.



Warranty Information

Period of Coverage

15 Degrees Cooler warrants its products that have been installed in accordance with the installation guidelines, under normal usage conditions, and with proper maintenance as follows:

Lifetime Limited Warranty on aluminum against material failure and corrosion.

25-year Limited Warranty on steel against material failure and defects.

10-year warranty against peeling, cracking, blistering, or crazing of the surface finish of aluminum components.

10-year Limited Warranty on Sunbrella, Sheerweave, and Solamesh Fabrics.

5-year Limited Warranty on Soltis 86 fabrics.

1-year warranty against defects in materials and workmanship.

The warranty period begins on the date of the original shipment.

What We Will Do To Correct Problems:

If defects or damage of the kind mentioned above should occur within the warranty period, we will replace the defective parts only; FOB its plant at Salem, Illinois, upon receiving the written and documented claim of the purchaser.

Warranty Exclusions:

Because of the normal aging and weathering of materials, it may not be possible to perfectly match the colors of original parts and replacement parts. 15 Degrees Cooler will not provide or pay for the installation of such replacement parts. 15 Degrees Cooler shall not be responsible for weather-related failures, damages due to faulty installation, misuse or abuse of the product, or consequential damages, including personal injuries or property damages. There are no warranties, express, or implied, which extend beyond the description on the face hereof.

How To File A Warranty Claim:

If you believe that you have a claim under this warranty, submit a copy of your original receipt or other reasonable evidence of the date of purchase, the identity of the product, and photos and a description of the allegedly defective product to the address below. Please also include your name, address, and phone number so that a customer service representative can respond to your submission. The ultimate determination of the existence and extent of any claimed defect under this warranty shall be made by 15 Degrees Cooler in its sole discretion.

Submit Claims To:

15 Degrees Cooler
Warranty Claim
P.O. Box 1290
Salem, IL 62881
