Lafayette Awning with Overhead Braces

The Lafayette Standing Seam Awning boasts a contemporary design ideal for residential and commercial settings alike. Its adaptable pitch, facilitated by a unique hinged attachment system, can be adjusted effortlessly during or after installation. Should the need arise, it can be easily removed and reinstalled without any maintenance requirements.

• Sturdy 24 gauge 12″-wide standing seam steel panels with Galvalume® substrate and Kynar® paint finish.
• 20-year limited warranty on panel finish (limitations apply for salty environments).
• Commercial-grade construction to resist wind speeds up to 115mph, and snow loads up to 20lb/sq ft.
• May be folded down in the event of severe weather or to allow access to the area above the awning.
• Aluminum frame and support arms with clear anodized finish will never rust.
• Top flashing includes a caulking groove to seal the awning against the wall.
• Open sides provide for reduced wind resistance.
• Concealed roof panel fasteners for improved weather resistance and aesthetics.
• Hardware is included for an easy do-it-yourself assembly. Appropriate wall anchors must be provided by the installer.
• Adding an awning to a window can reduce heat gain by up to 77%, which allows you to save as much as 25% on air conditioning costs.

Constructed from aluminum and steel, the Lafayette is covered by our industry leading warranty.

How To Order:

1. Pick the appropriate size needed for your application from our drop down menu.

• The Lafayette awning width varies by 6" increments. Select the awning width from the drop-down menu depending on where you will mount the support arms. The support arms must be mounted to a solid surface such as a door header, or wall stud.
• Larger widths are available upon request. Please Contact Us for custom requests.
• Please note that awnings will ship with the following number of overhead braces, depending on the awning width:

• The overhead braces will be spaced evenly, unless requested otherwise by the customer. Sometimes, it is not possible to space the braces evenly, in which case we will advise the customer and will advise our recommended spacing.
• Additional braces are available. Please Contact Us if you would like to order additional braces.
• Projection is a fixed measurement, the Lafayette Awning with Overhead Braces is available in 36" and 48" projection.
• Can be used above windows or doors.

2. Choose your desired awning color from our selection of swatches. Physical color samples are available upon request. Please note: Each color has a white wash coat on the underside of the panels, paired with an inked date stamp for manufacturer warranty verification.

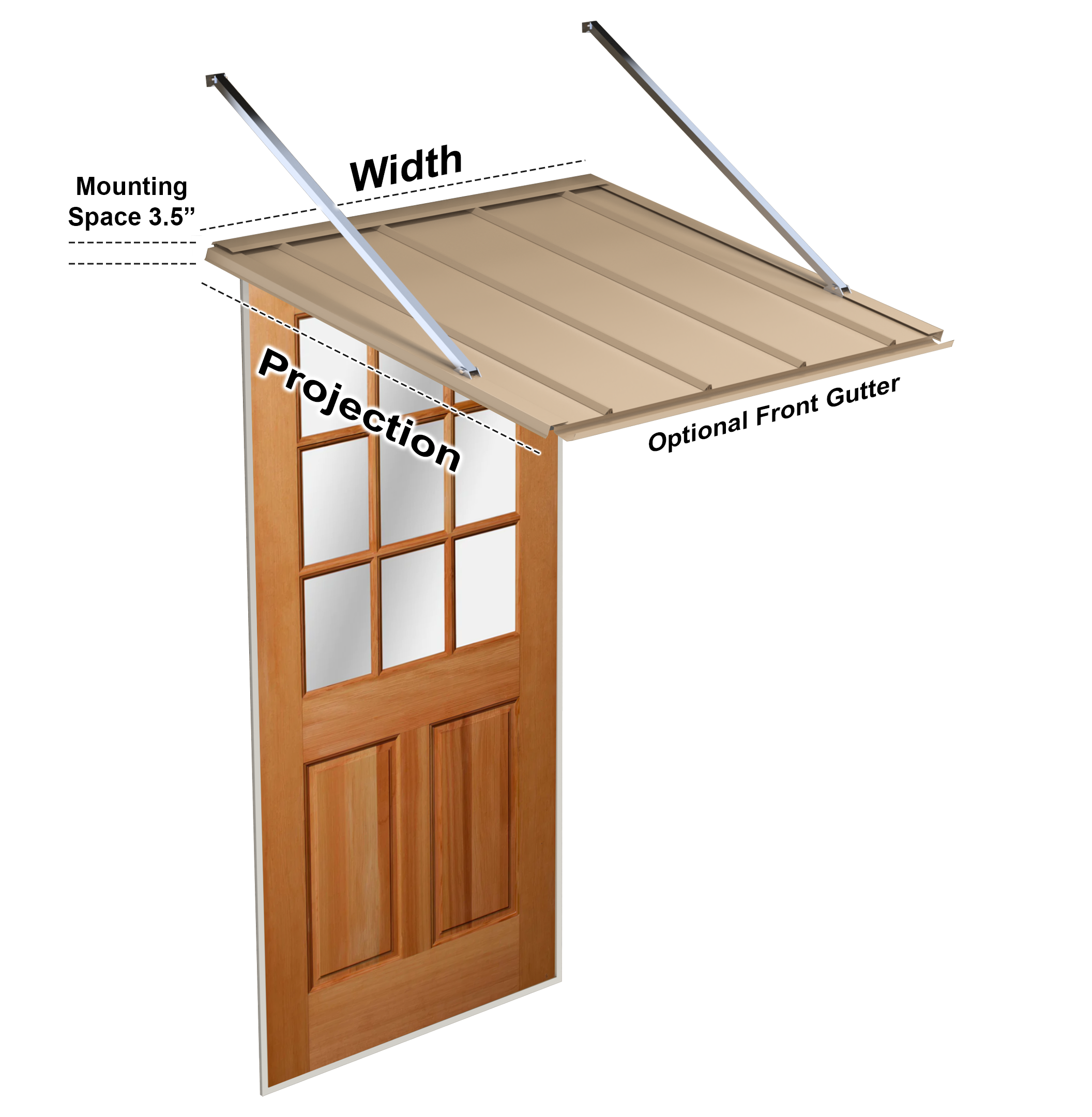

Visual Measuring Guide:
